Siemens Q270 SIE Q270
  1. pin-int

SIE Q270

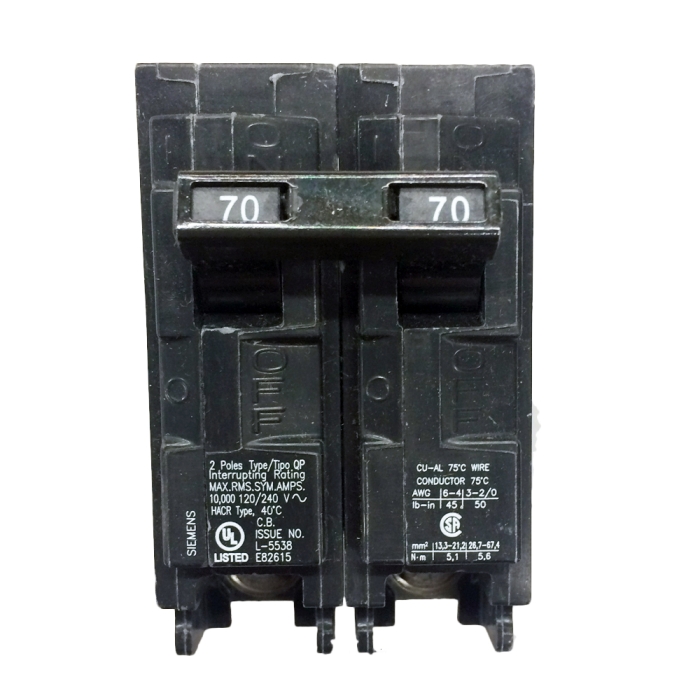

SIE Q270 BREAKER 70A 2P 120/240V 10

  • Manufacturer: Siemens
  • Brand Name: Siemens
  • Part#: SIE Q270
  • MPN: Q270
  • UPC: 783643148666
    • Sign In for Availability

Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 2-Pole, 120/240VAC are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type QP/MP Application Electrical Distribution Standard UL 489 Voltage Rating 120/240V Amperage Rating 70A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 2P

Conductor Size      :      8-4AWG(CU)/8-2AWG(AL)
Continuous current / rated value      :      70 A
Height [in]      :      3.12 in
Supply voltage frequency / rated value / 50/60 Hz      :      TRUE
Type of mounting panel      :      LOADCENTER
Voltage / between phase and phase / rated value      :      240 V
  • linkSIE Q270 https://mall.industry.siemens.com/tedservices/DatasheetService/DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:Q270&language=en
