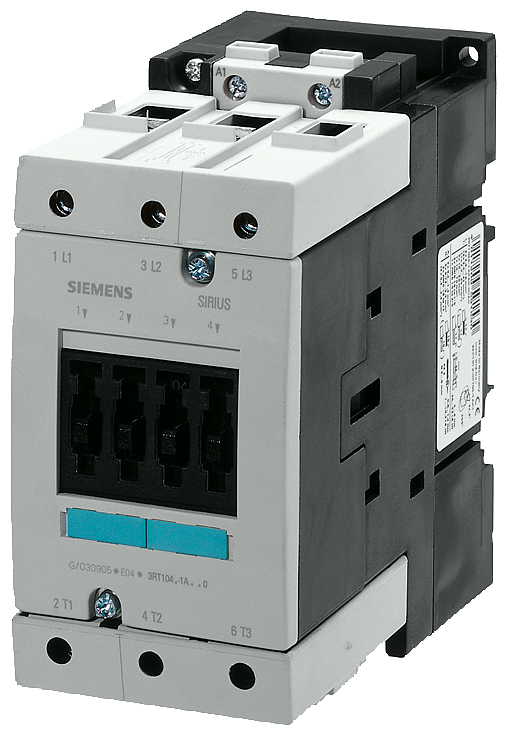

Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 24V 50/60 Hz AC Coil Frame Size S3,95A DIN/Panel Mount Screw Terminals No Auxiliaries No Suppression UL FileE31519 in Vol. 8 Sec. 2
| Ambient temperature / during operation / maximum | : | 60 °C |
| Ambient temperature / during operation / minimum | : | -25 °C |
| Depth | : | 139 mm |
| Height | : | 146 mm |
| Number of NC contacts / for main contacts | : | 0 |
| Number of NO contacts / for main contacts | : | 3 |
| Operating current / at AC-3 / at 400 V / Rated value | : | 95.0 A |
| Operating power / at AC-1 / at 400 V / rated value | : | 66.0 k kW |
| Operating power / at AC-3 / at 400 V / rated value | : | 45.0 k kW |
| Size of contactor | : | S3 |
SIA 3RT1046-1AC20
