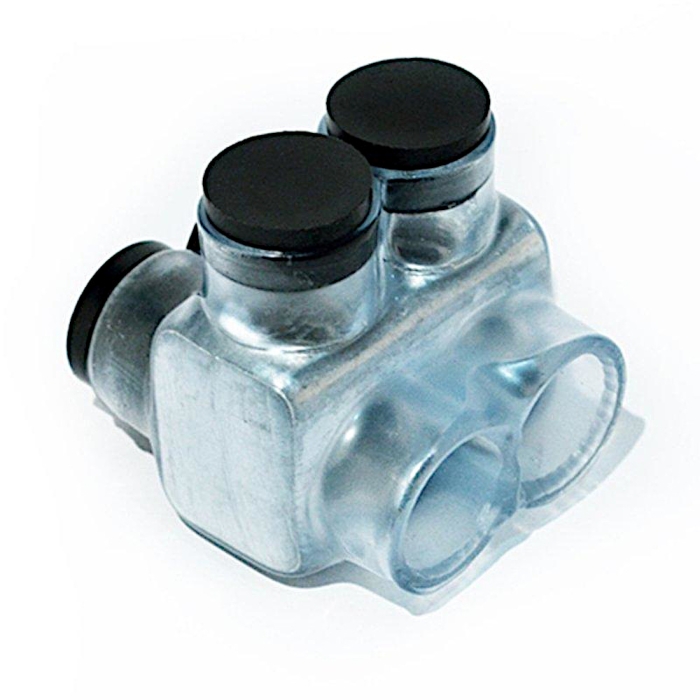

The Polaris IT-600C Multi-Tap Dual-Side Entry Connector features 2 ports sized for 600 MCM to 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
| Aluminum Conductor Max AMP | : | 385 Amp |
| Aluminum Conductor Note | : | Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables |
| Copper Conductor Max | : | 475 Amp |
| Material | : | Aluminum |
| Size | : | L=2.340 - W=2.940 - H=3.050 IN |
| Warranty | : | 1 Year |
| Wire Size | : | 600 MCM-6 AWG |
| Wire/Cable Class | : | Class B, Class C |
POL IT-600C
